ASI585MC/MM Pro
ASI585MC/MM Pro Deep Sky Camera

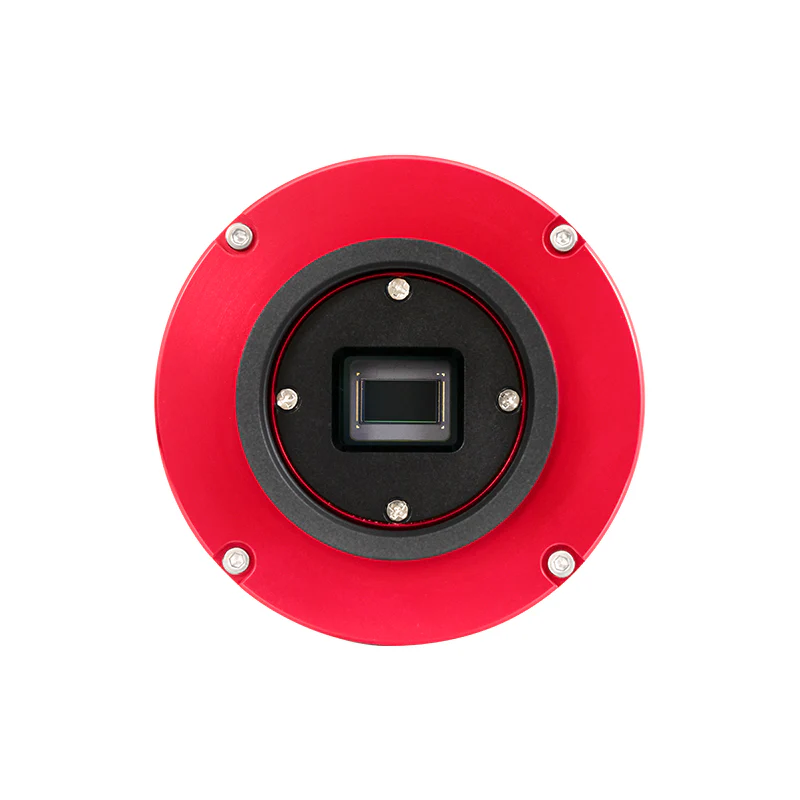

ASI585MC/MM Pro is a new ZWO deep sky camera based on the 4k SONY CMOS sensor with a 1/1.2″ format and 2.9μm pixels. It has a super high sensitivity and a large resolution of 3840*2160 (8.29MP in total). It also features high transmission speeds – In high-speed mode, the fast frame rate can reach 47fps with low read noise at full resolution! It also features a high SNR and high sensitivity, especially in near-infrared wavelength. Being an entry-level DSO camera, it offers great advantages of high cost-effectiveness.
Note：
External power supplies are needed for all ASl-cooled cameras. We recommend you use a 12V@3A~5A DC adapter (D5.5×2.1mm, center pole positive) or a lithium battery with 11-14V to power the camera. Be aware that using a power supply out of this voltage range will probably lead to irreparable damage to the camera.
Why Choose ASI585MC/MM Pro?
One Camera for All
STARVIS 2 technology provides advanced imaging performance for both deep-sky objects and solar/lunar/planetary photography thanks to its high frame rate.
Appreciation Work
Large Full Well Capacity
The back-illuminated structure provides 40ke- full well capacity (3× greater than IMX485 sensors), improving light collection efficiency and preventing highlight overexposure while enhancing signal-to-noise ratio.
Zero Amp Glow Technology
Hardware-level amp glow elimination ensures clean dark frames regardless of exposure length or gain settings.
512MB DDR3 Memory
Built-in cache combined with USB 3.0 interface ensures stable high-speed data transmission.

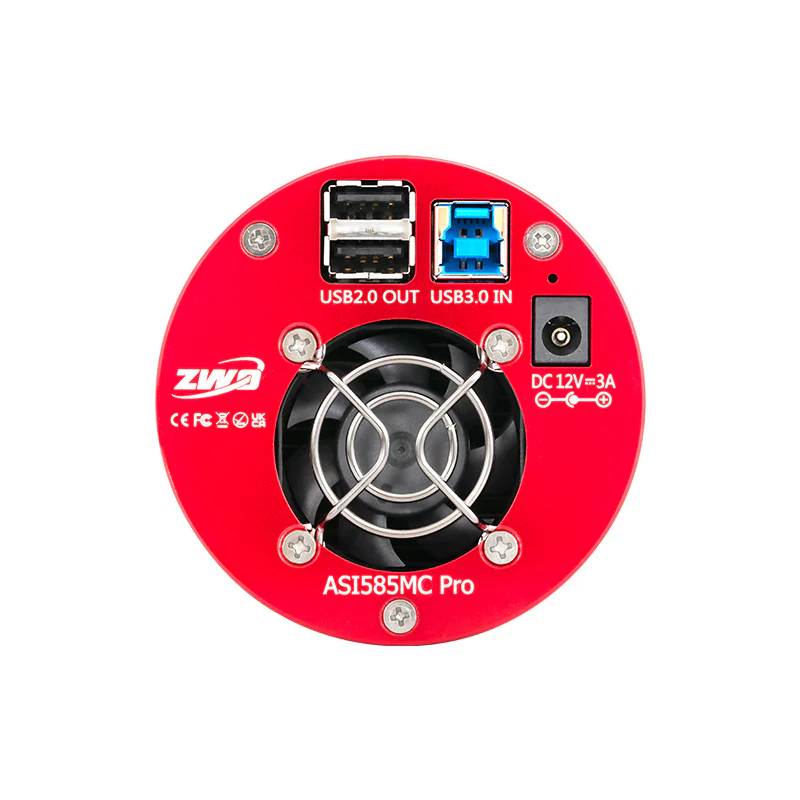

USB 3.0 Port & USB 2.0 HUB
- USB 3.0: 5Gb bandwidth enables 47fps at 8.29MP resolution
- USB 2.0 Hub: Supports accessories like filter wheels and focusers
Two-Stage TEC Cooling
Cools sensor to 35°C below ambient (at 30°C), significantly reducing dark current during long exposures.
Note: Cooling performance varies with ambient temperature and duration.
Camera Performance
Low Noise with High Dynamic Range
HCG mode automatically activates at gain 200, reducing read noise to 0.7e while maintaining 12bit dynamic range.
ASI585MC Pro
Quantum Efficiency
Based on our testing results, the QE peak value of ASI585 is 91%.
Connection Options (55mm Back Focus)
Mechanical Dimensions
What's in the Box?
Original: $599.00
-65%$599.00
$209.65Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
ASI585MC/MM Pro Deep Sky Camera
ASI585MC/MM Pro is a new ZWO deep sky camera based on the 4k SONY CMOS sensor with a 1/1.2″ format and 2.9μm pixels. It has a super high sensitivity and a large resolution of 3840*2160 (8.29MP in total). It also features high transmission speeds – In high-speed mode, the fast frame rate can reach 47fps with low read noise at full resolution! It also features a high SNR and high sensitivity, especially in near-infrared wavelength. Being an entry-level DSO camera, it offers great advantages of high cost-effectiveness.
Note：
External power supplies are needed for all ASl-cooled cameras. We recommend you use a 12V@3A~5A DC adapter (D5.5×2.1mm, center pole positive) or a lithium battery with 11-14V to power the camera. Be aware that using a power supply out of this voltage range will probably lead to irreparable damage to the camera.
Why Choose ASI585MC/MM Pro?
One Camera for All
STARVIS 2 technology provides advanced imaging performance for both deep-sky objects and solar/lunar/planetary photography thanks to its high frame rate.
Appreciation Work
Large Full Well Capacity
The back-illuminated structure provides 40ke- full well capacity (3× greater than IMX485 sensors), improving light collection efficiency and preventing highlight overexposure while enhancing signal-to-noise ratio.
Zero Amp Glow Technology
Hardware-level amp glow elimination ensures clean dark frames regardless of exposure length or gain settings.
512MB DDR3 Memory
Built-in cache combined with USB 3.0 interface ensures stable high-speed data transmission.
USB 3.0 Port & USB 2.0 HUB
- USB 3.0: 5Gb bandwidth enables 47fps at 8.29MP resolution
- USB 2.0 Hub: Supports accessories like filter wheels and focusers
Two-Stage TEC Cooling
Cools sensor to 35°C below ambient (at 30°C), significantly reducing dark current during long exposures.
Note: Cooling performance varies with ambient temperature and duration.
Camera Performance
Low Noise with High Dynamic Range
HCG mode automatically activates at gain 200, reducing read noise to 0.7e while maintaining 12bit dynamic range.
ASI585MC ProQuantum Efficiency
Based on our testing results, the QE peak value of ASI585 is 91%.
Connection Options (55mm Back Focus)
Mechanical Dimensions
What's in the Box?
